One day my friend called me and asked what the wood stove venting requirements, were because of the increasing popularity of wood stoves in the markets.
He also wants to invest in one.
Nowadays, the demand for wood stoves is increasing because they come with great perks, making people buy them.
Wood stoves are eco-friendly compared to other fuels and gases, give excessive heat, and work during power cuts.
So, what are wood stove venting requirements?
- Direct Venting
- Factory-Built Chimney Venting
- Masonry Chimney Venting
- Chimney Venting
.
In this article, I will discuss the venting requirements of wood stoves, installation considerations, and key safety guidelines.

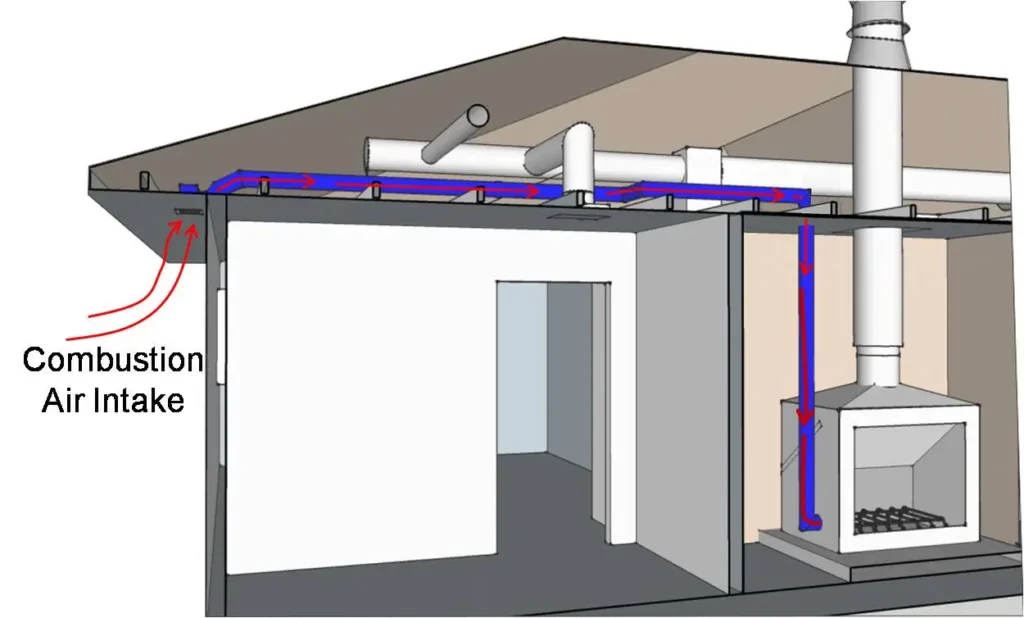

What is Wood Stove Venting Systems
The byproducts of combustion by wood stoves require a venting system to remove all the byproducts like gases, smoke, and other matter.
Out of these four venting systems, only 2 are used commonly for wood stoves direct venting, and chimney venting.
What are Wood Stove Venting Requirements?

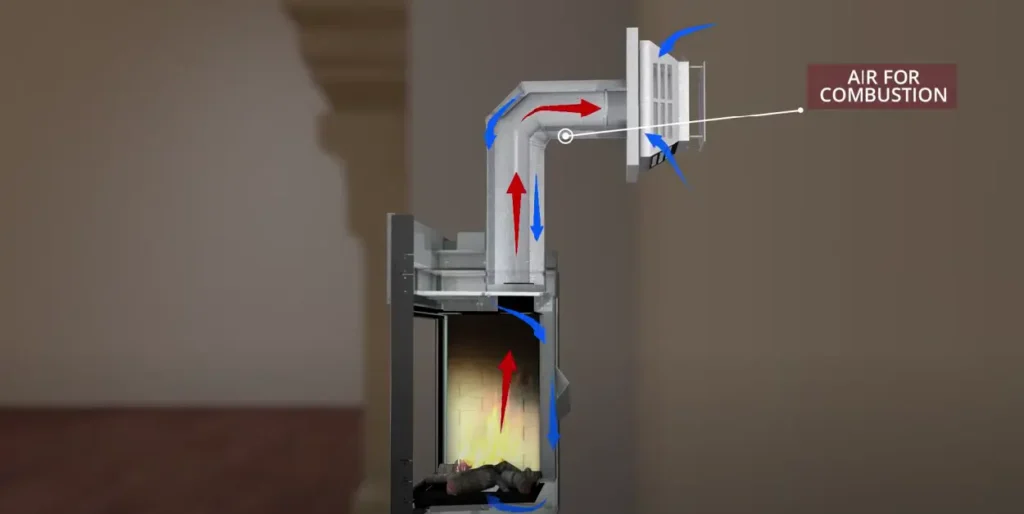

1. Direct Venting

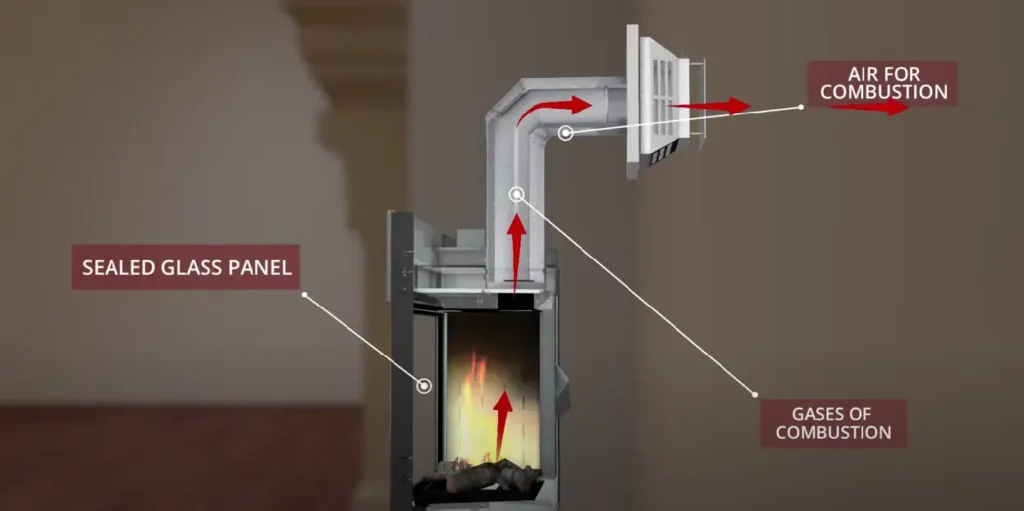

Direct venting system separates incoming air from outgoing air combustion gases to support combustion outdoor air is drawn into the vent cap and down to the burner at the bottom of the firebox.
The heat generated by the flames rises and exits from the vent pipes, this process is called thermo siphoning.
The combustion chamber is repeated from the room by a sealed glass panel.

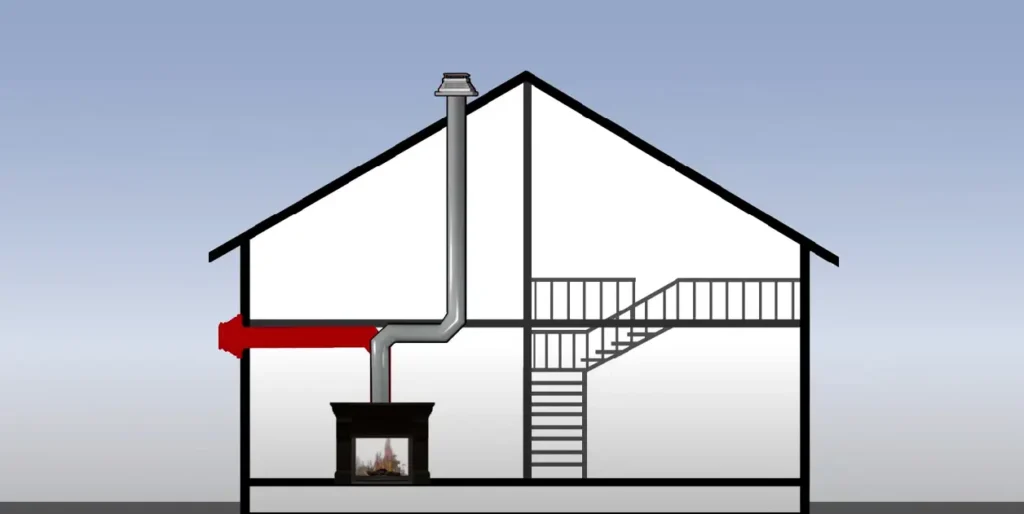

The primary benefit of direct vent technology is the versatility of installation which allows for vertical or horizontal termination.
Advantages of Direct-Vents
Versatility
- Installs in a variety of applications.
Convenience
- Provide heat during power cuts.
- You can operate with a remote or thermostat.
Efficiency
- 60% to 80% Efficient.

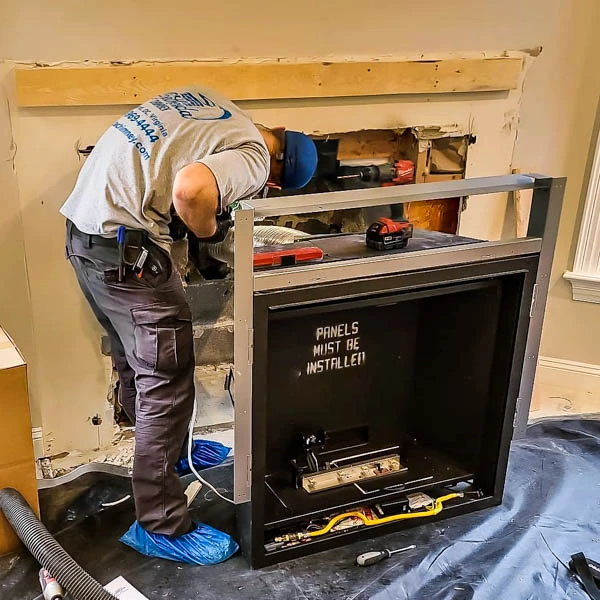

2. Factory-Built Chimney Venting
Factory-made chimneys, also known as prefabricated or class A chimneys, are constructed in advance and undergo testing to ensure they meet particular safety requirements.
These chimneys provide versatility when it comes to installation and are generally simpler to install compared to masonry chimneys.
It is not meant to be used with wood stoves which can make the stove excessively hot and can cause some damage.
Always follow the manufacturer’s instructions for proper installation and maintenance is required.
Advantages of Factory-Build Chimney Venting
- Cost-Effective
Factory-made fireplaces are frequently cheaper than conventional masonry fireplaces.
- Quick Installation
It only takes a fraction of the time to install them compared to building a traditional masonry fireplace.
- Space-Saving:
They can fit into smaller areas and are usually less heavy, which means they can be placed in various spots around the house.

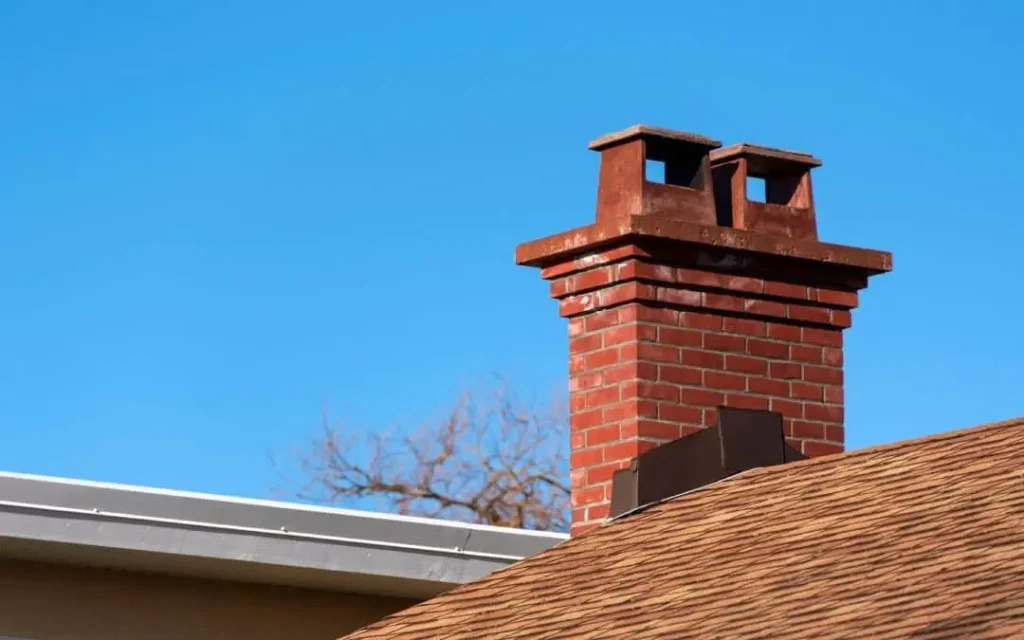

3. Masonry Chimney Venting
It’s a brick chimney so if you take a look outside of your the odds are then it is a masonry chimney, if the inside of your fireplace is all brick and it looks like brick then it’s a masonry fireplace.
A stainless steel chimney liner is often utilized to boost safety and enhance the performance of airflow.
It has only one pro it stays cleaner and less dusty.
4. Chimney Venting
This is the oldest method used for wood stove installation. You need to link the stove to either a masonry or factory-built chimney system.
It needs to be built with a suitable material that can handle the flame’s temperature and can perform its task properly.
Advantages of Chimney Venting
- Preventing odors
Chimney removes the bad odor produced by combustion, which can be dangerous if not properly ventilated.
- Reducing energy costs
If a chimney performs its task properly then it will make your fireplace more efficient and energy-saving fireplace.
- Improving indoor air quality
Proper ventilation removes all the pollutants produced by combustion which directly improves the air quality of the house.
Installation Considerations for Wood Stoves
A good installation is required for a wood stove to work properly and efficiently, it reduces issues if it is installed properly.
Here are some considerations you need to follow:
- Only use the pipe to the specification that the manufacturer recommended, the use of the correct length and diameter pipe is essential for proper ventilation, otherwise, improper sizing can affect stove performance.
- Insulation is considered to maximize the heat inside and draft efficiency. To reduce the risk of creosote buildup and condensation.
- Follow the venting height recommended by the manufacturer’s instructions don’t do anything on your own otherwise it will minimize the efficiency of the venting.
- Not enough space around the stove could lead to the heat reaching flammable materials nearby, potentially starting a dangerous fire. Make sure there is enough space between the stove and any flammable objects, including the bottom, top, sides, front, and back.
- Hire a professional if you don’t know how to manage these things, there are many services in your area that provide venting services at affordable prices.
Safety Guidelines for Wood Stoves
There are many safety guidelines but here are some in following:
- Regular cleaning
Many people say that you clean your stovepipe and chimney once a year but I would suggest cleaning it twice a year. Don’t use salt-based chemical cleansers, because they can seriously damage your chimney lining.
- Use proper fuel
Always use the fuel recommended by manufacturer instructions, use some other which is not recommended can breach the safety of the wood stove.
- Remove creosote buildup
Creosote is a fuel that burns with high intensity and is extremely flammable. which should not be collected in the stove, this is very dangerous if not managed professionally.
Creosote may take 3 forms:
- This gooey substance will flow down the chimney and stove pipe before it gets burned.
- You can easily brush off the black, flaky residue.
- It’s like a stubborn, shiny tar that sticks to everything and is a nightmare to get rid of unless you call in a chimney sweep who knows their stuff.
FAQ
Do you need a vent for a wood-burning stove?
Yes, All the byproducts of combustion which is dangerous to human health, which is why the vent is important to remove the byproduct like gases and smoke.
Can you install a stove without a vent?
No, don’t do that because the role of the vent is to remove the byproducts of combustion, using a stove without a vent can cause an accumulation of smoke and gases in your house which is dangerous to your health.
